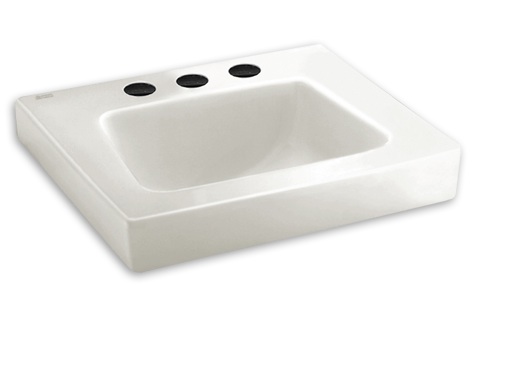

American Standard 0194.076.020 Roxalyn 8″ Wall-Hung Sink Cat. No. 9AS0194
Faucet holes on 203mm (8”) centers, front overflow.
Faucet ledge, designed for off-wall installation with 2” clearance from wall.
Concealed arms support & exposed bracket support and cover flanges to be supplied by others.
20″ x 18″ (508 x 457mm)
14-1/4″ (362mm) wide
10-3/4″ (273mm) front-to-back
7″ (178mm) deep
