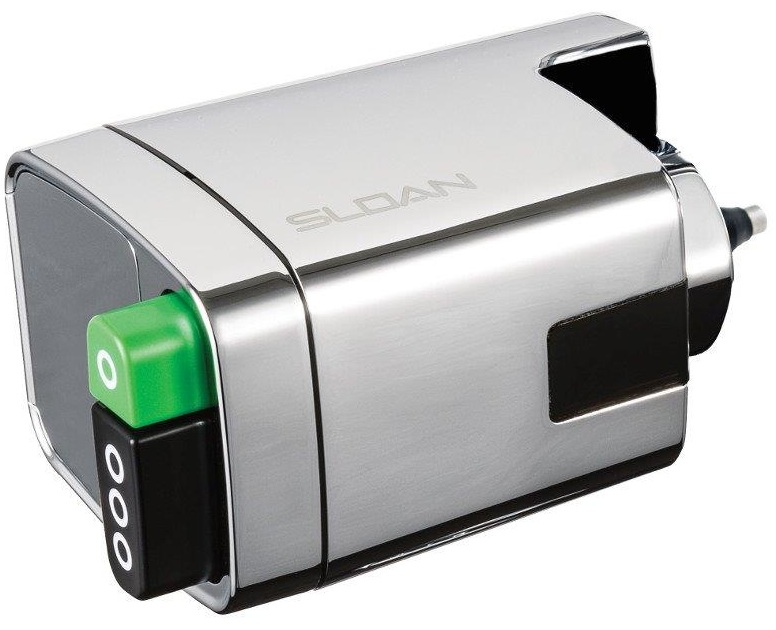

Sloan Dual-Flush EBV-550-A SMO Cat. No. 921S262
Battery-Powered, Sensor Activated, Dual Flush Retrofit Conversion Kit for
Exposed Closet Flushometers.
ADA Compliant Infrared Side-Mount Sensor for “No Hands” operation
Chrome Plated Housing Infrared Sensor Housing
Non-Hold Open True Mechanical Override (TMO) Full Flush Button
If the user is present for less than one minute and leaves the sensing zone
or chooses the small GREEN override button,
a reduced flush initiates (1.1gpf/4.2Lpf) eliminating liquid and paper
waste, saving 1/2 gallon of water.
If the user is present for greater than one minute and leaves the zone or
chooses the large BLACK override button,
the full flush initiates (1.6gpf/6.0Lpf) eliminating solid waste and paper
Reduces water volume by 30% when a reduced flush occurs
Initial Set-Up Range Indicator Light (first 10 minutes)
User-friendly three (3) second Flush Delay
Four (4) Size alkaline Batteries included
Low Battery Flashing LED
User in View Flashing LED
Can be installed when handle is on left or right side of valve
Installation Tools provided
The Side-Mount units can be used on standard rough-in Sloan, Royal, Regal,
Crown and Zurn flushometers.
